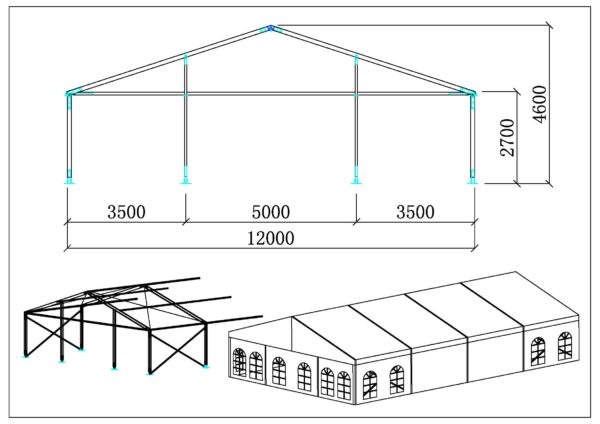

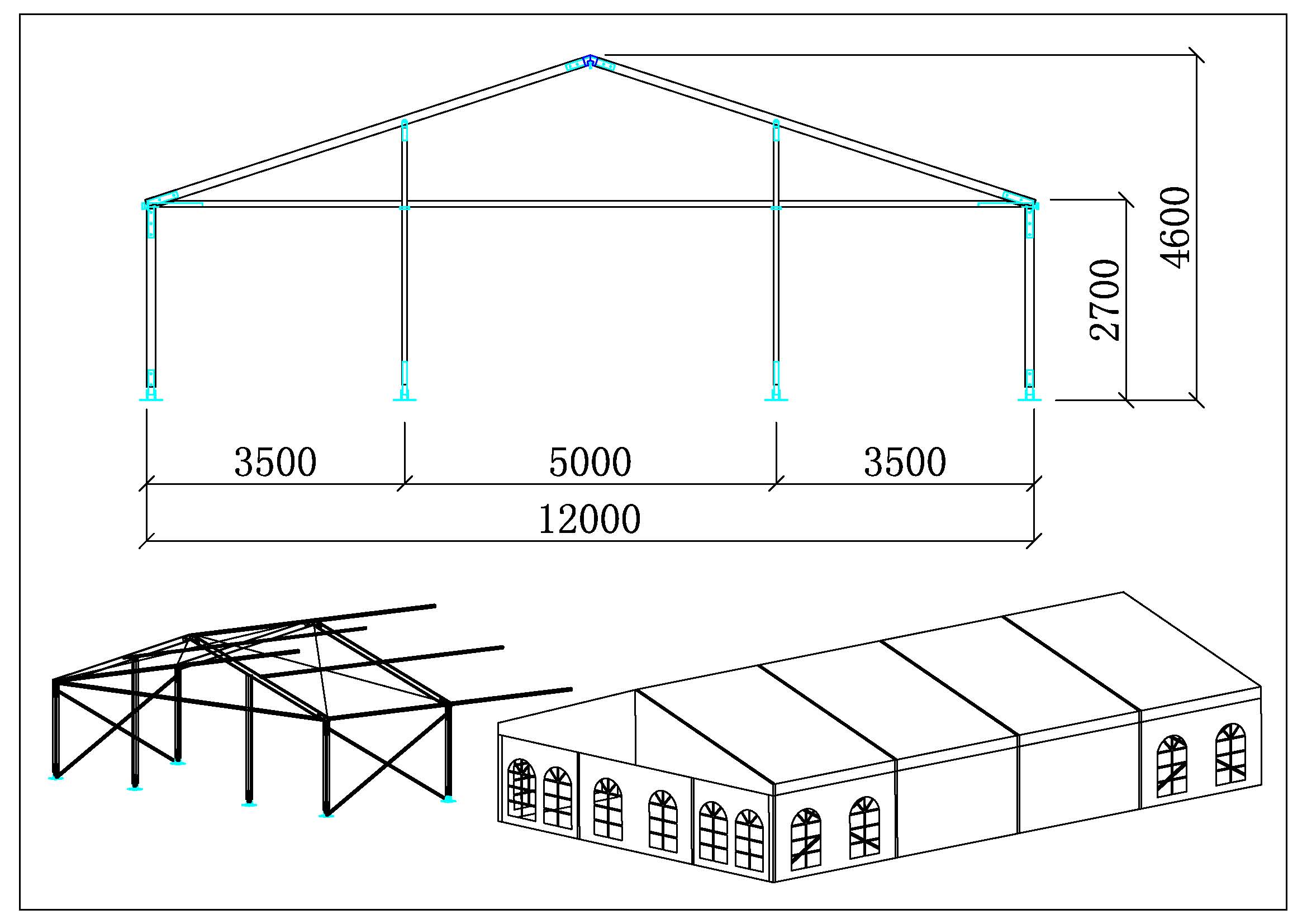

- Width: 12m
- Height dimension: 2.7m/3m
- Center height: 4.6m/4.9m
- Roof pitch: 18°.
- Portion width: 3m/5m
- Portion length: 6.3m
- Minimum length: 10m
- Maximum length: Unlimited
- Profile structure: 166mm x 88mm x 3mm
- Pre-roof connection: Internal insertion of the eaves
- Max. wind speed: 100 km/h
- Wind resistance: 0.5 kN / m².
- Floor option: Wood and steel flooring. Aluminum and wood or all-aluminum substructures.
- Covering: Polyester textile 650-900g / m2 covered with PVC, flame retardant to DIN 4102 B1 M2
