Pagoda 4x4m

Pagoda of 4×4 meters. Couple several of these tents together and access larger areas such as 4x12m or 8x8m depending on the desired shape.

Category: Tags: ,

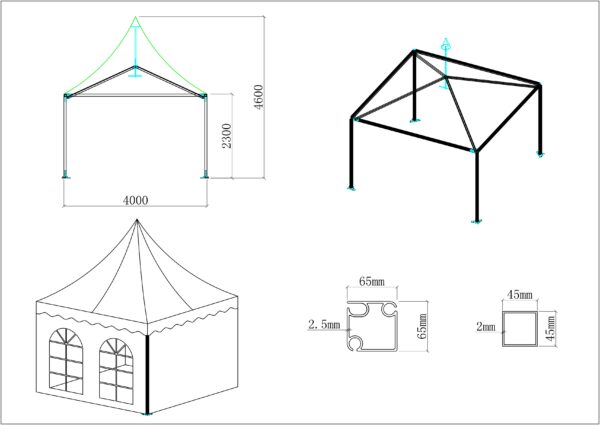

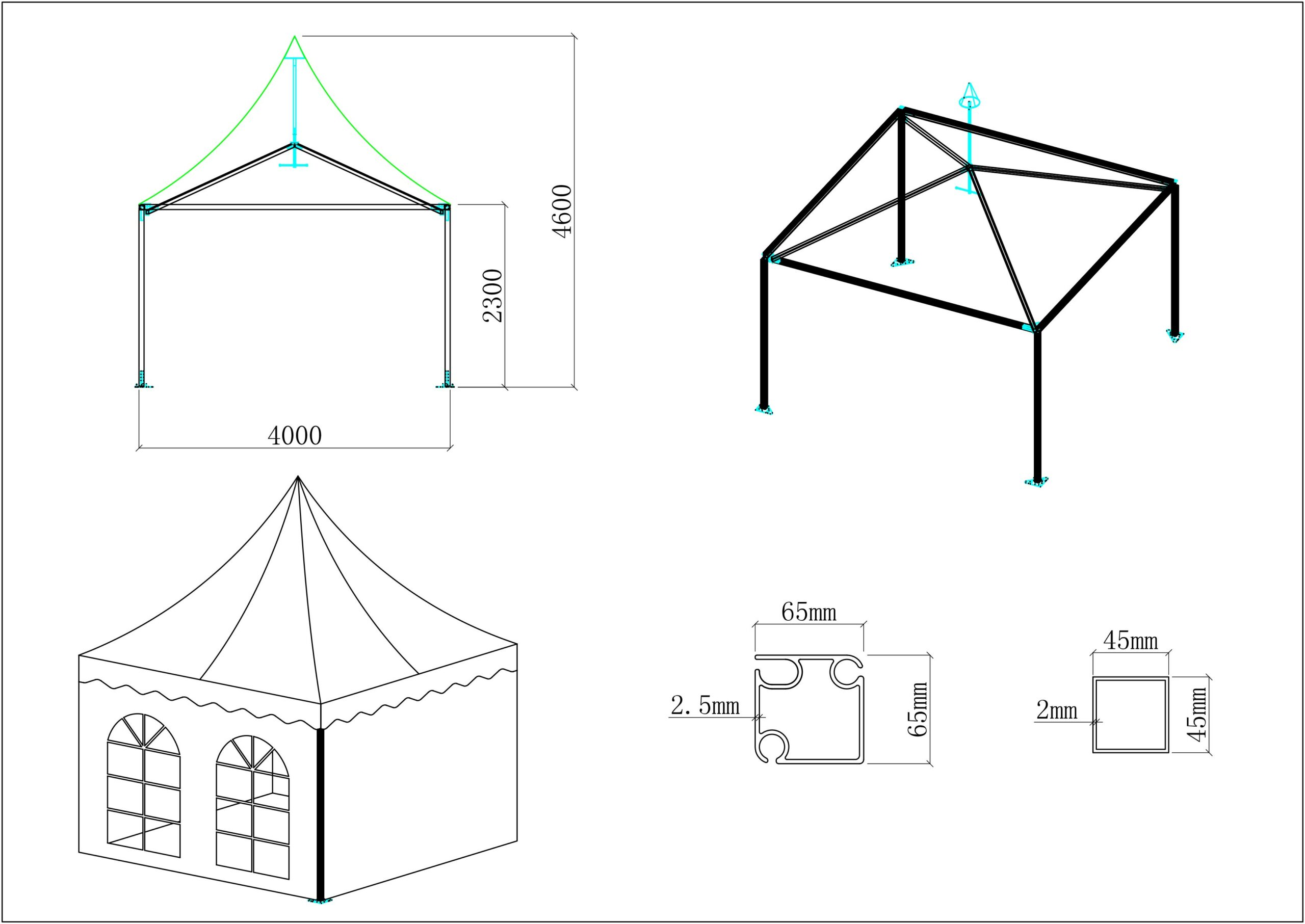

Technical data

  • Width: 4m
  • Height dimension: 2.3m
  • Center height: 3.1m/4.6m
  • Roof pitch: 18°.
  • Portion width: 4m
  • Profile structure: 65mm x 65mm x 2.5mm
  • Front roof connection: Welded steel pipes
  • Max. wind speed: 100 km/h
  • Wind resistance: 0.3 kN/m².
  • Floor option: Wood and steel flooring. Aluminum and wood or all-aluminum substructures.
  • Covering: Polyester textile 650-900g / m2 covered with PVC, flame retardant to DIN 4102 B1 M2
