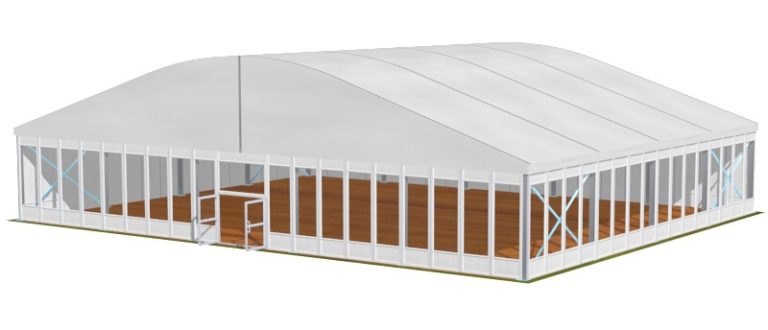

Arched 25m

Description

Technical data

  • Width: 25m
  • Height dimension: 4m
  • Center height: 7.3m
  • Roof pitch: 18°.
  • Portion width: 5m
  • Portion length: 6.1m
  • Minimum length: 25m
  • Maximum length: Unlimited
  • Profile structure: 250mm x 110mm x 4mm
  • Front roof connection: Corners and column with connected steel plates
  • Max. wind speed: 100 km/h
  • Wind resistance: 0.5 kN/m².
  • Floor option: Wood and steel flooring. Aluminum and wood or all-aluminum substructures.
  • Covering: Polyester textile 650-900g / m2 covered with PVC, flame retardant to DIN 4102 B1 M2
